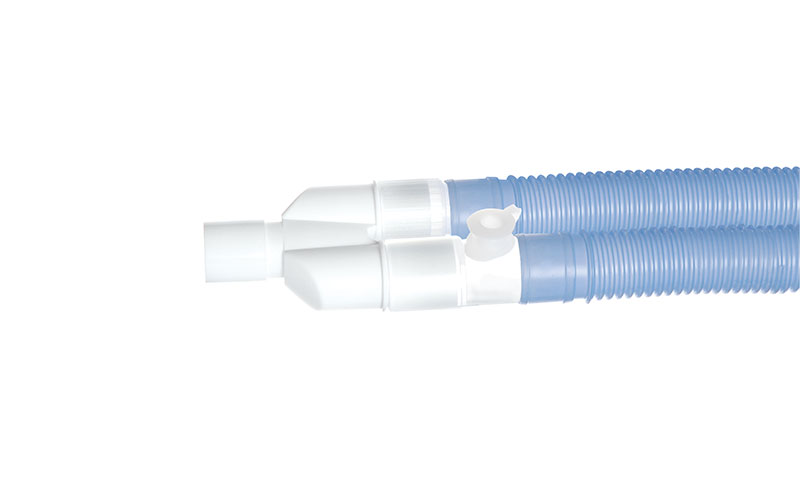

Adult Dual Limb Heated Wire Circuit
- Dual Limb Heated Ventilator Circuit is designed to maintain the temperature and humidity of the air delivered to the patient along the circuit
- Compatible with the leading brands of humidifier
- Color-coded for easy identification
- Dual Heated Circuit for Ventilator is available in both single or dual-limb configurations, Adult to Neonatal sizes
The Adult Dual Limb Heated Ventilator Circuit is equipped with heated wires in both inspiratory and expiratory limbs, and the inspiratory limb accepts a humidifier and proximal airway temperature probe. The circuit is designed for both invasive mechanical ventilation and non-invasive ventilation, and it's available with or without a humidification chamber.

Color-Coded Identity
For easy identification, heated wire limbs are colored in blue

T-Shape Probe Adaptor
A special design with the fit-in shaped holder and the seal ring port, accommodating T-shaped temperature port and minimizes the probe movement.

Tube Clip Securement
Provides tube organization near the patient and reduce the circuit drop

Protective Cap
Prevents particle contamination and minimize the cross infection

Spiral-Configured Heated Wire
- High-quality, spiral-shaped, and elongated heated wire element evenly heats the gases with maximum contact area
- The spiral-shaped heated wire causes lower tube resistance for patient safety
Gallery

Adult Dual Limb Heated Wire Circuit

Available with or without a humidification chamber
Specifications
REF | Wye Connector | Tubing | Flex Tube | L Connector | Straight Connector | S Connector | S Connector | Chamber |
---|---|---|---|---|---|---|---|---|
AH0019 | 22/15, 22mm | 150cm *2 | 22F, 60cm | 22F/22M*1 | 22F/22B *3 | 22F, 7.9F port, 23M | 22/19*1 | N/A |
AH0020 | 22/15, 22mm | 150cm *2 | 22F, 60cm | 22F/22M*1 | 22F/22B *3 | 22F, 7.9F port, 23M | 22/19*1 | ● |
AH0051 | 22/15, 22mm | 150cm *2 | 22F, 50cm | 22F/22M*1 | 22F/22B *2 | N/A | 22/19*1 | ● |
AH0054 | 22/15, 22mm | 150cm *2 | 22F, 50cm | 22F/22M*1 | 22F/22B *2 | N/A | 22/19*1 | N/A |
Order Information
REF | Description | QTY |
---|---|---|
AH0019 | HW2 Circuit(Spiral-Configured Heated Wire), Adult |
10 pcs/carton |
AH0020 | HW2 Circuit(Spiral-Configured Heated Wire), Adult w/Chamber |
10 pcs/carton |
AH0051 | HW2 Circuit, Adult w/Chamber | 10 pcs/carton |
AH0054 | HW2 Circuit, Adult |
10 pcs/carton |
