Bubble CPAP System
The Bubble CPAP system is designed to provide stable CPAP delivery with intuitive pressure control, supporting gentle respiratory care for premature and infant patients.
- Bubble-based pressure generation creates natural oscillations within the CPAP circuit, supporting effective pressure distribution along the airway.
With its advanced diffuser design, the PAP Valve Pro generates both large and small bubble, producing pressure variations at different amplitudes and frequencies to help distribute pressure from the larger airways to smaller distal airways. - Adjustable CPAP pressure control via a rotating pressure adjustment lever, with clear visual reference of water level to support accurate pressure setting.
- Closed-system water level adjustment allows water to be added or drained without disconnecting the breathing circuit, maintaining continuous circuit integrity during use.
- 360° swivel inlet connector compatible with 15M and 22F expiratory circuit connectors, supporting flexible circuit configuration.
l Intended for use with premature infants and infants under 10 kg, as part of a Bubble CPAP respiratory support system.
Babi.Plus® Bubble PAP Valve Generator (Pro) provides a continuous positive airway pressure to pre-terms, terms and infants weighing less than 10 kg for spontaneously breathing. Bubble PAP Valve is adjustable from 0 to 10 cmH₂O for gas flow 1-12 liters per minute with accuracy of ± 1 cmH₂0.
360° Swivel Inlet Connector
Accepts 15M and 22F expiratory circuit connectors
Rotating Pressure Adjustment Lever
Adjustable Range: 0 to 10 cmH₂O
Bubble Generating Diffuser
Deliver uniform bubbles to generate stable pressure
Water Level Adjustment Port
Allows water to be added or removed without disconnecting
Water Fill In Indicate
Indicate the appropriate water level for pressure delivery accuracy
Diffuser design incorporating both large and small openings to produce pressure oscillations at different amplitudes and frequencies.
| 360° Swivel Inlet Connector | Gas Flow Range | Pressure Adjustable Range |
| 15 mm O.D./22 mm I.D. | 1-12 liters per minute | 0-10 cmH2O |
| REF | Description | QTY |
|---|---|---|

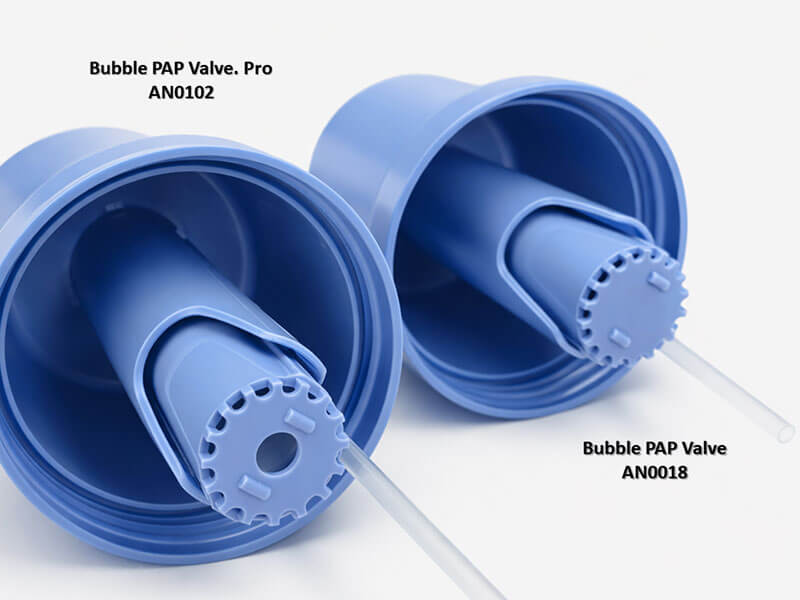

| AN0018 | Bubble PAP Valve | 24 pcs/box |
| AN0102 | Bubble PAP Valve. Pro | 24 pcs/box |
